GOT: The Bristol Type 146/148

GOTTHREAD

  • Please log in to reply
5 replies to this topic

#1 Romantic Technofreak

Romantic Technofreak

    GOT Custodian

  • Forum Guru
  • PipPipPipPip
  • 1,997 posts
  • Joined 13 Years, 7 Months and 19 Days
  • 289 topics

Posted 24 September 2006 - 11:18 PM

This time again we look upon machines with a very short career, thus creating a comparedly easy-to-write GOT topic. Text from samoloty.ow.pl, translation using www.poltran.com, with satisfying performance. Links are given at the end of the single parts, technical data and sources included. Responsibility for errors and misunderstandings is by myself alone.


Type 146

During the Thirties of last century, there was a period when aircraft construction caused a generalization of technical solutions, like the monoplane, retractable undercarriage, closed cabin, metal construction and mechanized, automatically changeable wing geometry. All these inventions, connected with powerful engines, allowed to build aircraft representing a qualitative jump in relation to their precursors. In 1934, the British Air Ministry issued the specification for a new single-engine-single-seat fighter to replace the contemporary Gloster "Gauntlet" and "Gladiator" as well as the Hawker "Fury" and "Demon" biplane fighters.

The specification was only in general, but very ambitious due to the technical level of that year. Among others, the demanded maximum speed at a height of 4572 m was 442 km/h, and 426 km/h at a height of 6096 m, an operational ceiling of 10058 m and a flight duration of 90 minutes. The new aircraft had to be single-seated, with closed cabin, retractable undercarriage and had to have an armament of six to eight barrels with a stockpile of 300 cartridges each, to allow to lead fire by 15 seconds.

Eight competitive projects of fighter aircraft responded to that specification. They were Bristol (type 146), Fairey, Gloster (F 5/34), Martin-Baker (MB-2), Vickers (type 279 "Venom"),

Picture #1: Competitor Vickers "Venom"


Westland, as well as late by a certain degree Hawker (Hurricane) and Supermarine (Spitfire). All were cantilever low-wing monoplanes, had closed cabins and with one exception retractable undercarriages.

The new project of the Bristol aircraft firm based on the earliest fighter design of this kind this brand had undertaken, the type 133. It was an entirely metal construction - only rudders were covered with fabric, the pilot's cabin was closed and the three-point undercarriage except the fixed tailwheel was retractable. The wing geometry was rectangular towards the centerplane and the outer sections were a bit lifted.

Picture 2: Predecessor Bristol Type 133


Initially, the aircraft was driven by a Bristol "Perseus" radial engine, but later it got the soundest engine for that purpose, the Bristol "Mercury IX".

Low priority caused the prototype 146, wearing the military index K5119, only to be finished at the turn of 1937 to 1938. On February 11th, 1938, it had its maiden flight under the control of test pilot Cyril F. Uwins.

Picture #3: Bristol 146 "K5119"


Test flights at the RAF Aeroplane & Armament Experimental Establishment (A&AEE) in Martlesham Heath followed, but after an accident the aircraft was scrapped. A second prototype, registrated as K8088, was already finished.

While competitive fighters of that time, like Hurricane and Spitfire, showed considerably better performances and were already produced in series, Bristol resigned from further development of the type 146. However, the general design process bore advantages for the next Bristol projects, the two-seat fighter type 147, the army cooperation plane type 148 and the single seat fighter types 151 and 153.

Source: http://www.samoloty.ow.pl/str120.htm (off and gone)



Type 148

In 1935, the British Air Ministry issued the specification A.39/34 for a modern single-engined two-seat army cooperation aircraft to substitute the contemporary biplanes Hawker "Audax" and "Hector". First of all, the aircraft had to serve as short-range reconnoisater, to observe the battlefield and to guide the fire of the artillery, but, if necessary, also to support the ground troops by dropping light bombs and by gunfire.

The maximum speed so desired was 418 km/h, the landing speed not more than 80,5 km/h and a bomb load of 227 kg was intended. Among others, good maneuvering characteristics at slow speeds were demanded, perfect visibility for the crew, capability of take-off and land on small frontline airfields as well as the chance for dive-bombing. Besides this, the aircraft had to be armed with two fixed guns. Six British aircraft firms presented projects in answer to the specifications, they were Avro (type 670), Boulton-Paul (P.81), Bristol (type 148), Cierva ("Gyroplane"), Hawker (probably with the "Henley", RT), and Westland (P.8, later known as "Lysander").

The aircraft type 148 was designed in the Bristol plants by engineer Frank Barnwell. He presented a modification of the earlier projects type 133 and 146 and the two-seater type 147. It was a closed-cabin single-engine cantilever low-wing construction with a retractable three-point undercarriage, but the tailwheel was fixed. The wings with there rounded ends could be equipped with automatically operating slots and flaps. Space for wireless station and cameras was foreseen in the fuselage. Two fixed machine guns of caliber 7,7 mm were both installed in the left wing only, and for small bombs there were clinches under the wings. One movable rifle of caliber 7,7 mm was to serve for self-defense in a reverse shooting position in the observer's station. For to drive the machine, the 9-cylinder radial engine Bristol "Mercury IX", delivering 656 kw (880 hp), was chosen.

In June 1935, two 148 prototypes, registrated under the indexes K6551 and K6552, were ordered by the Air Ministry. The first of them, K6551, had its maiden flight with Cyril F. Uwins at the controls on October 15th, 1937 at Filton. The rear defensive machine gun was only installed later.

After an accident caused by malfunction of the retractable undercarriage, the machine was completely rebuilt, now installing the probably soundest engine for that purpose, the Bristol "Perseus", delivering 675 kw (905 hp). Meanwhile, the other prototype K6552 was equipped with a Bristol "Taurus II" radial engine, which delivered 783 kw (1050 hp). This engine was of characteristically compact construction, it had a diameter of only 117,5 cm. In May 1938, this machine was renamed type 148B and underwent comparative tests with the first prototype K6551.

Picture #4: Bristol 148B "K6552"


However, the further development of this type was soon delayed. The first prototype went into service as ground training station for instruction of technical staff and got its registration changed to 2374M.

The farthest development of type 148/148B remained on the status of prototypes. For the intended purpose, the Air Ministry only chose the competitive type Westland "Lysander", and in the following time, Bristol concentrated its bomber development on the two-engined types "Blenheim" and "Beaufort".

Source: http://www.samoloty.ow.pl/str012.htm (vanished, but unforgotten)

Regards, RT



#2 GregP

GregP

    Forum Guru

  • Forum Guru
  • PipPipPipPipPip
  • 4,221 posts
  • Joined 13 Years, 9 Months and 25 Days
  • 222 topics

Posted 25 September 2006 - 01:48 AM

A very nice rendition, RT, as usual, but you introduced your own RT Obscure Types ... the Types 151 and 153!

Now I have some fun ahead trying to find out about them, too!

Thanks! :)

#3 montanamotor

montanamotor

    Regular Member

  • Members
  • PipPipPip
  • 407 posts
  • Joined 11 Years and 28 Days
  • 39 topics

Posted 25 September 2006 - 09:04 PM

Hmmm,

a wise saying about aircraft goes like: "If it looks well, it flies well."

Well - what should I say about the looks of these poor dogs...? Even aircraft-engineers sometimes may be completely devoid of aesthetical notions...

Well done, RT!

Cheers!

Montanamotor

#4 Romantic Technofreak

Romantic Technofreak

    GOT Custodian

  • Forum Guru
  • PipPipPipPip
  • 1,997 posts
  • Joined 13 Years, 7 Months and 19 Days
  • 289 topics

Posted 26 September 2006 - 02:28 AM

Thank you, friends. I think Bristol 151 and 153 were unbuilt projects. Once our friend PMN1 provided an artist's impression of a bunch of type 153 in combat. I could provide a drawing of it, if somebody requires.

Michael, I think here you exaggerate. Questions of taste are always a bit difficult. I even once became a little irritated with Greg when he called some aircraft ugly:

[http://tgplanes.com/...sp?TOPIC_ID=839, try to retrieve this yourself, if you please]

Remember how aircraft designs before 1934/35 used to look. It is also true that aircraft of that time did not have a service duration of 50 years and longer, like e.g. B-52 and C-130 have. The development was changing rapidly between 1930 and 1955 (one reason why our focus is on that time), and the Bristol types 146 and 148 were completely matching the style of their time.

Your English, Michael, uses to be much better than mine. But here I caught you with a mistake. It must read: "What looks good flies well!" (could be my signature, if I would choose one). An exception - no adverb because the flying thing doesn´t look out itself, but is looked upon! Hope you don't mind. ;)

Regards, RT



#5 PMN1

PMN1

    Forum Guru

  • Forum Guru
  • PipPipPipPip
  • 1,197 posts
  • Joined 13 Years, 4 Months and 15 Days
  • 234 topics

Posted 26 September 2006 - 02:40 AM

quote:Originally posted by Romantic Technofreak

Thank you, friends. I think Bristol 151 and 153 were unbuilt projects. Once our friend PMN1 provided an artist´s impression of a bunch of type 153 in combat. I could provide a drawing of it, if somebody requires.



And here we are again........

http://myspace.virgi...dell/AArt3.html

#6 heshamh

heshamh

    Registered Member

  • Members
  • Pip
  • 9 posts
  • Joined 4 Years, 5 Months and 2 Days
  • 2 topics

Posted 25 January 2013 - 03:44 PM

Hi,

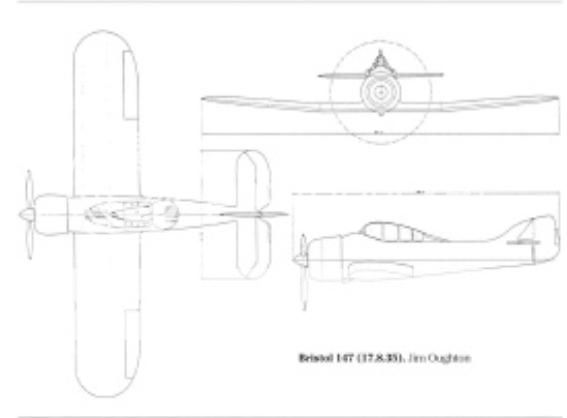

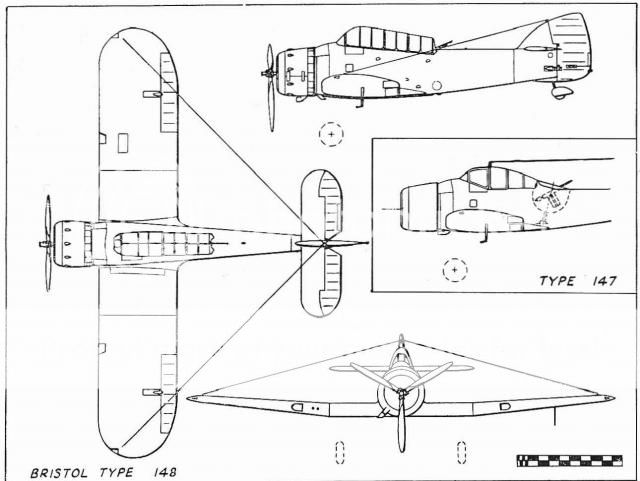

here is the Bristol 147 and 148;

Posted Image

Posted Image
